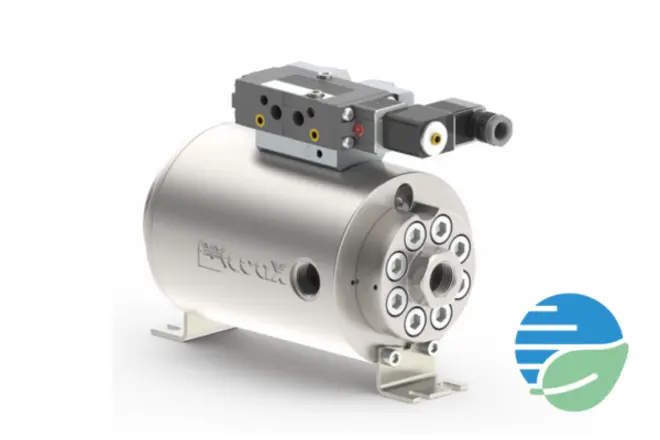

MÜLLER CO-AX KX 1000 high-pressure valve for hydrogen applications

Compact, efficient and tight up to 1000 bar.

The new KX 1000 hydrogen valve from MÜLLER CO-AX sets new standards in high-pressure technology. Developed for pressures up to 1000 bar, it impresses with its compact design, high tightness, durability, low control air consumption and high flow rate - ideal for demanding hydrogen applications along the entire value chain: from production to transport and refuelling.

Technical Data :

Nominal sizes

DN 8

Pressure rating

PN 0 to 1000 bar

Temperature range

-10 °C to +60 °C

Ambient temperature

-10°C to +50°C

Connections

Threaded

Power supply

DC 24V / AC 230V

Enclosure protection

IP 65 (P54) DIN 40 050

Certification

ISO 19880-3 (hydrogen refuelling stations)

Documentation

DEFREN
Overview Brochure
Data Sheet
Operating Instructions
Declaration of Conformity PED
Declaration of Conformity ATEX

Application

Compressors
Hydrogen transport
Hydrogen service stations
